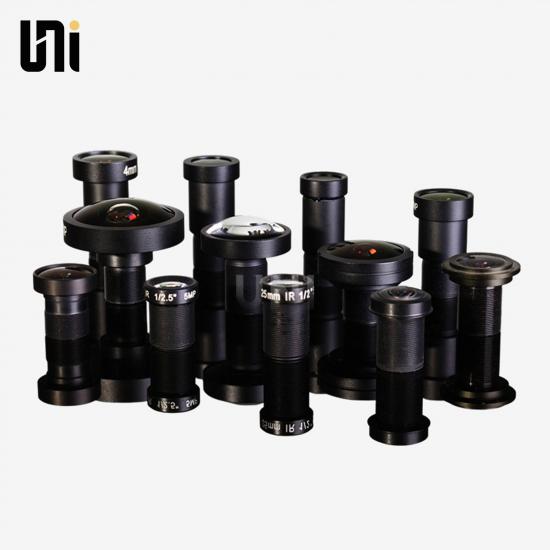

| Wide Angle Lenses | ||||||||
| No. | Model |
Focal length
(mm)
|
Format | Mount | F.No | FOV(H*V*D) | Resoluion |
Dimension
(mm)
|
| 1 | UN-UW001832C-5MP | 1.83 | 1/2.7" | M12 | 2.0 | 160°*105°*190° | 5MP | φ16.00*L13.20 |
| 2 | UN-UW001752C-5MP | 1.75 | 1/4" | M12 | 2.0 | 128°*95°*170° | 5MP | φ14.00*L15.01 |
| 3 | UN-UW2024C-5MP | 2.0 | 1/4" | M12 | 2.4 | 115°*87°*170° | 5MP | φ14.00*L10.57 |
| 4 | UN-UW00233025C-5MP | 2.33 | 1/3" | M12 | 2.5 | 133.1°*69.3°*161.4° | 5MP | φ15.00*L14.35 |
| 5 | UN-UW0252C-2MP | 2.5 | 1/4" | M12 | 2.0 | 95.58°*73.8°*123° | 2MP | φ14.0*L15.82 |
| 6 | UN-UW0262C-6MP | 2.6 | 1/2.8" | M12 | 2.0 | 124°*89°*172.2° | 6MP | φ14.00*L14.33 |
| 7 | UN-UW00267018C-5MP | 2.67 | 1/3" | M12 | 1.8 | 130°*65.7°*160° | 5MP | φ14.0*L18.20 |
| 8 | UN-UW002752C-5MP | 2.75 | 1/2.7" | M12 | 2.0 | 135°*70°*164° | 5MP | φ14.00*L10.22 |
| 9 | UN-UW002782C-6MP | 2.78 | 1/2.7" | M12 | 2.0 | 130°*69°*166° | 6MP | φ14.0*L14.13 |
| 10 | UN-UW00286025C-8MP | 2.86 | 1/2.3" | M12 | 2.5 | 130°*95°*170° | 8MP | φ17.50*L18.69 |
| 11 | UN-UW00292024C-5MP | 2.92 | 1/2.7" | M12 | 2.4 | 132°*66°*163° | 5MP | φ14.0*L10.33 |
| 12 | UN-UW002952C-5MP | 2.95 | 1/2.7" | M12 | 2.0 | 118°*62°*140° | 5MP | φ14.0*L16.15 |
| 13 | UN-UW00357025C-16MP | 3.57 | 1/2.3" | M12 | 2.5 | 108°*81°*135° | 16MP | φ14.00*L13.00 |
| 14 | UN-UW0312C-16MP | 3.1 | 1/2.5" | M12 | 2.0 | 122°*67°*144° | 16MP | φ17.0*L19.45 |
| 15 | UN-UW0362C-8.8MP | 3.6 | 1/1.8" | M12 | 2.0 | 129°*67°*159° | 8.8MP | φ17.0*L17.93 |
