Product Features:
1. Compatible for 2/3'' Format Sensor
2. Ultra-compact Design
3. Ultra Low Distortion
4. High Relative Illumination
5. High Cost Performance
6. Supply with Focus and Iris locking screws.
Product information: Custom designs are available upon request.
Download the datasheet of UN-TFA2520C
|

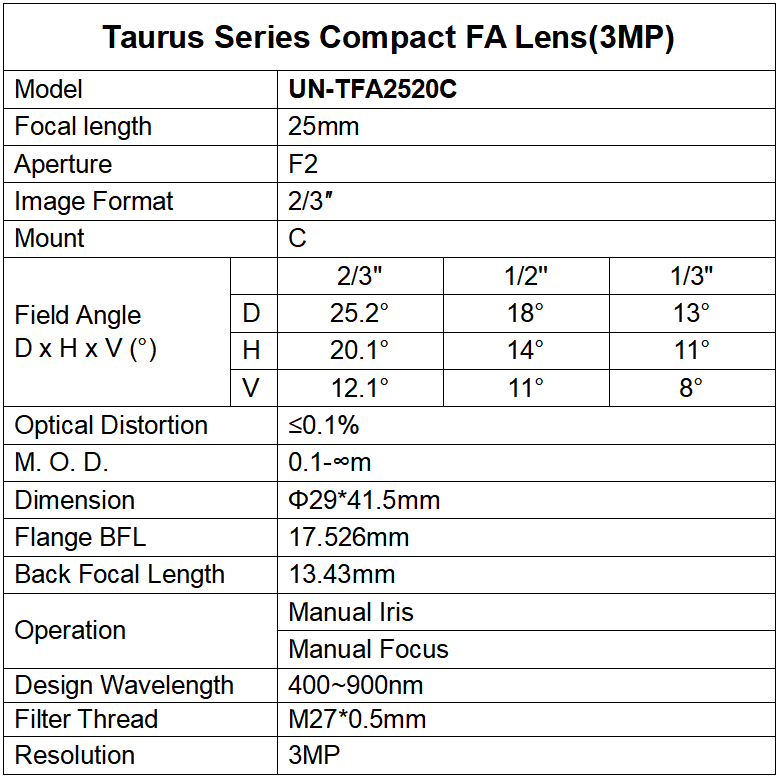

Taurus Series Compact FA Lens(3MP) |
|||||
|
Model |
UN-TFA2520C |
||||
|
Focal length |
25mm |
|
|||
|
Aperture |
F2.0 |
||||
|
Image Format |
2/3″ |
||||
|
Mount |
C |
||||
|
Field Angle |
|
2/3" |
1/2'' |
1/3" |
|
|
D |
24.81° |
18.18° |
13.69° |
||
|
H |
19.96° |
14.59° |
10.97° |
||
|
V |
15.04° |
10.97° |
8.24° |
||
|
Optical Distortion |
<0.1% |
||||
|
M. O. D. |
0.1m |
||||
|
Dimension |
φ29*41mm |
||||
|
Flange BFL |
17.526mm |
||||
|
Back Focal Length |
13.43mm |
||||
|
Operation |
Manual Iris |
||||
|
Manual Focus |
|||||
|
Design Wavelength |
400~900nm |
||||
|
Filter Thread |
M27*0.5 |
||||
 |
|||||
