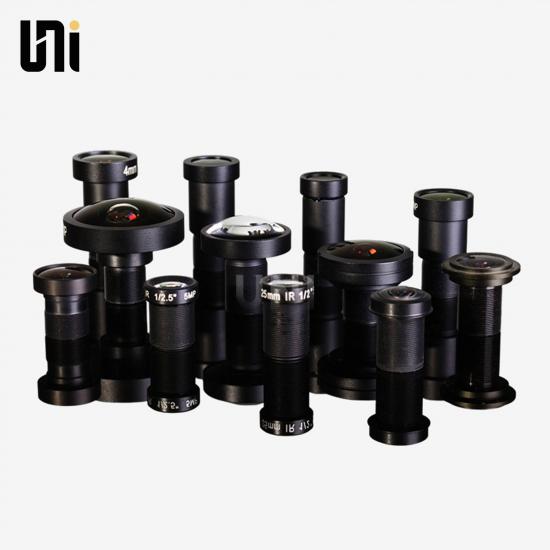

| Low Distortion Lenses | ||||||||
| No. | Model |
Focal length
(mm)
|
Format | Mount |
Aperture
(F/#)
|
F.O.V
(H*V*D)
|
Resolution |
Dimension
(mm)
|
| 1 | UN-UW00186024C-8.8MP | 1.86 | 1/2.7" | M12 | 2.4 | 123°*101°*137° | 8.8MP | φ14.00*L13.30 |
| 2 | UN-UW00195024C-8.46MP | 1.95 | 1/2.8" | M12 | 2.4 | 115°*80°*125° | 8.46MP | φ18.2*L20.54 |
| 3 | UN-UW027028C-16MP | 2.7 | 1/2.3" | M12 | 2.8 | 77°*61.1°*87.7° | 16MP | φ17.4*L21.38 |
| 4 | UN-UW32C-8MP | 3 | 1/1.7" | M12 | 2 | 111.9°*73.5°*120.6 | 8MP | φ22.00*L25.92 |
| 5 | UN-UW035028C-8.8MP | 3.5 | 1/2" | M12 | 2.8 | 86°*70°*100° | 8.8MP | φ20.0*L18.59 |
| 6 | UN-UW042018C-8MP | 4.2 | 1/1.7" | M12 | 1.8 | 85.5°*54.7°*93.4° | 8MP | φ22.00*L26.31 |
| 7 | UN-UW004353C-8.8MP | 4.35 | 1/2.3" | M12 | 3 | 73°*56°86° | 8.8MP | φ14.0*L19.90 |
| 8 | UN-UW00445025C-16MP | 4.45 | 1/1.8" | M12 | 2.5 | 83°*52°*89° | 16MP | φ17.4*L22.90 |
| 9 | UN-UW054028C-12MP | 5.4 | 1/2.3" | M12 | 2.8 | 60.4°*32°*72.4° | 12MP | φ14.00*L18.56 |
| 10 | UN-UW055028C-8.8MP | 5.5 | 1/1.8" | M12 | 2.8 | 60°*46°*72° | 8.8MP | φ20.0*L22.53 |
| 11 | UN-UW057016C-8MP | 5.7 | 1/1.7" | M12 | 1.6 | 71.3°*42.9°*79.2° | 8MP | φ20.00*L27.92 |
| 12 | UN-UW6028C-5MP | 6 | 2/3" | M12 | 2.8 | 67.25°*50.50°*83.80° | 5MP | φ25.00*L25.12 |
| 13 | UN-UW072025C-8MP | 7.2 | 1/2.3" | M12 | 2.5 | 50.6°*38.6°*61.4° | 8MP | φ19.00*L25.50 |
| 14 | UN-UW8028C-8.8MP | 8 | 1/1.8" | M12 | 2.8 | 47°*35°*56° | 8.8MP | φ20.0*L21.17 |
| 15 | UN-UW00836028-16MP | 8.36 | 1/2.3" | M12 | 2.8 | 41.3°*31.8°*50.7° | 16MP | φ17.4*L18.85 |
| 16 | UN-UW122C-8MP | 12 | 1/1.8" | M12 | 2 | 33.9°*25.6°*41.9° | 8MP | φ15.00*L20.4 |
| 17 | UN-UW12028C-8.8MP | 12 | 1/1.8" | M12 | 2.8 | 32°*25°*41° | 8.8MP | φ15.5*L19.45 |
| 18 | UN-UW16028C-8.8MP | 16 | 1/1.8" | M12 | 2.8 | 25°*18°*30° | 8.8MP | φ14.0*L13.73 |
| 19 | UN-UW16028C-16MP | 16 | 1/1.8" | M12 | 2.8 | 26.8°*15.2°*30.6° | 16MP | φ14.0*L16.32 |
| 20 | UN-UW25028C-8.8MP | 25 | 1/1.8" | M12 | 2.8 | 15.6°*13.2°*18.7° | 8.8MP | φ14.0*L20.25 |
| 21 | UN-UW25024C-12MP | 25 | 1/1.8" | M12 | 2.4 | 17.4°*9.8°*20° | 12MP | φ18.0*L2.48 |
| 22 | UN-UW35024C-12MP | 35 | 1/1.8" | M12 | 2.4 | 11.2°*10°*15.6° | 12MP | φ22.0*L28.82 |
| 23 | UN-UW50024C-12MP | 50 | 1/1.8" | M12 | 2.4 | 6.5°*5.27°*10° | 12MP | φ22.00*L32.77 |
| 24 | UN-UW70035C-8MP | 70 | 1/1.8" | M12 | 3.5 | 6.25°*3.53°*7.19° | 8MP | φ29.00*L67.8 |
