Home /

Machine Vision Lens

/

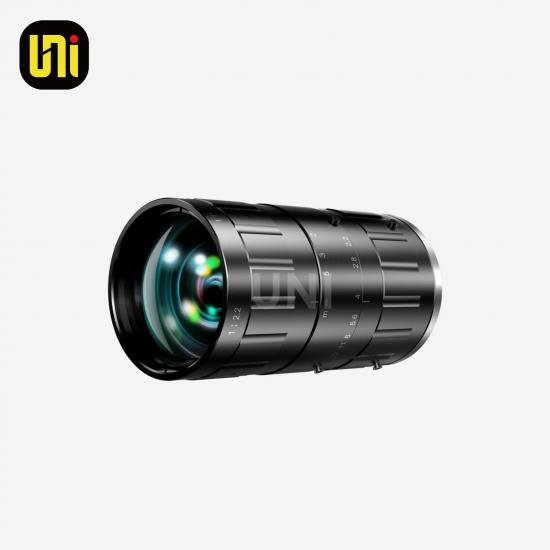

Taurus Series 12MP 1.1'' FA Lens

/UN-TFA7522L-12MP

UN-TFA7522L-12MP
UN-TFA7522L-12MP

UN-TFA7522L-12MP

· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1" and 1.1" 12MP camera
Inquiry now
  • description

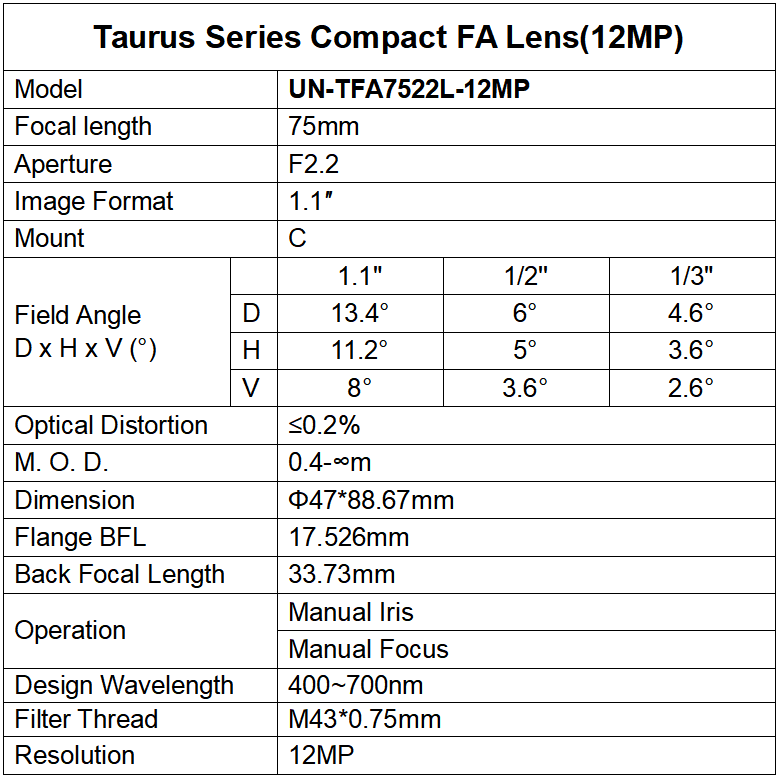

Taurus Series 1.1″ Format FA Lens(12MP)

Model

UN-TFA7522L-12MP

Focal length

75mm

Aperture

F2.2

Image Format

1.1″

Mount

C

Field Angle

D x H x V (°)



1.1

D

13.04°

H

10.04°

V

7.84°

Optical Distortion

≤0.2%

M. O. D.

0.40m

Dimension

Φ47*88.67mm

Flange BFL

17.526mm

Back Focal Length

33.73mm

Operation

Manual  Iris

Manual  Focus

Design Wavelength

400-900nm

Filter Thread

M43*0.75
