UN-TFA3528L-20MP

· High relative illumination and high contrast

· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1'' and 1.1'' 20MP camera

Inquiry now
  • description

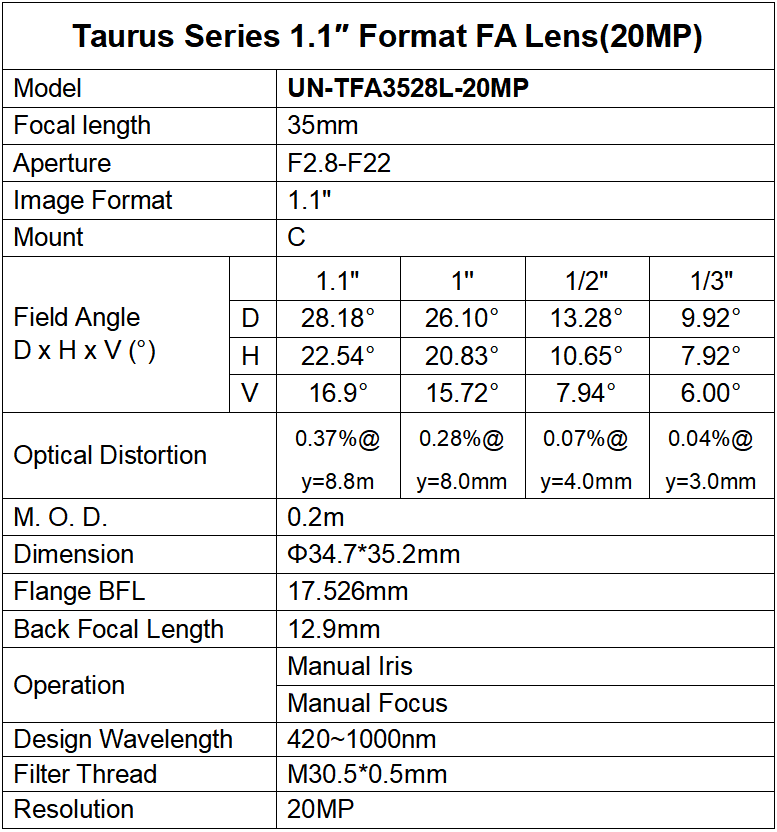

Taurus Series 1.1 Format FA Lens(20MP)

Model

UN-TFA3528L-20MP

Focal length

35mm





Aperture

F2.8-F22

Image Format

1.1

Mount

C



Field Angle

D x H x V (°)



1.1"

1"

1/2"

1/3"

D

28.18°

26.10°

13.28°

9.92°

H

22.54°

20.83°

10.65°

7.92°

V

16.9°

15.72°

7.94°

6.00°

Optical Distortion

0.37%@

y=8.8mm

0.28%@

y=8.0mm

0.07%@

y=4.0mm

0.04%@

y=3.0mm

M. O. D.

0.2m

Dimension

Φ34.7*35.2mm

Flange BFL

17.526mm

Back Focal Length

12.9mm

Operation

Manual Iris

Manual Focus

Design Wavelength

420~1000nm

Filter Thread

M30.5×P0.5
