· High image contrast
· High brightness uniformity
· Suitable for 2.4u sensor, resolution upto 10MP
· Compact, lightweight and durable
|

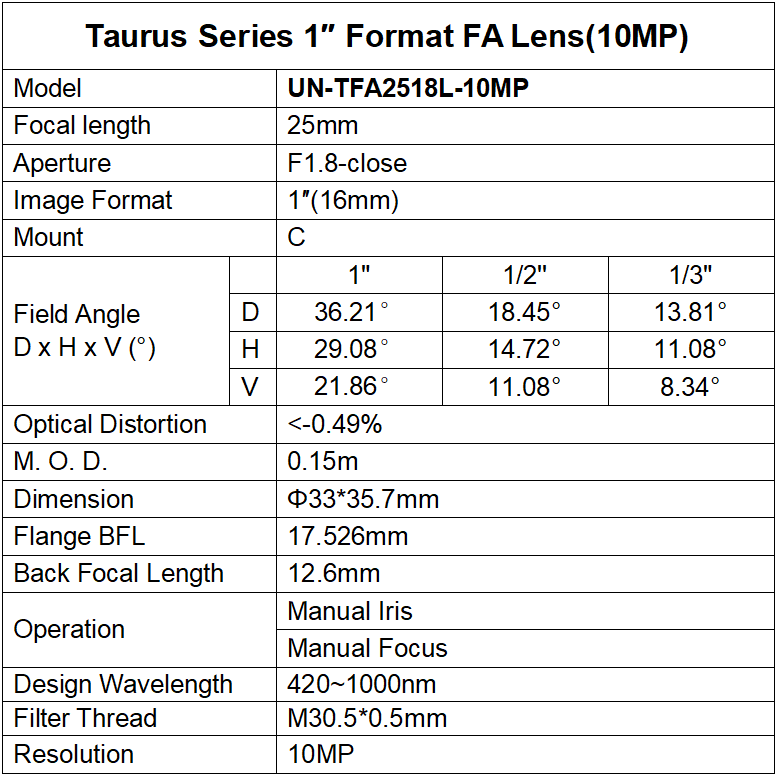

Taurus Series 1″ Format FA Lens(10MP) |
|||
|
Model |
UN-TFA2518L-10MP |
||
|
Focal length |
25mm |
|
|
|
Aperture |
F1.8-close |
||
|
Image Format |
1"(16mm) |
||
|
Mount |
C |
||
|
Field Angle
|
|
D x H x V (°) |
|
|
1" |
36.21°×29.08°×21.86° |
||
|
1/2'' |
18.45°×14.72°×11.08° |
||
|
1/3" |
13.81°×11.08°×8.34° |
||
|
Optical Distortion |
<-0.49% |
||
|
M. O. D. |
0.15m |
||
|
Dimension |
Φ33*35.7mm |
||
|
Flange BFL |
17.526mm |
||
|
Back Focal Length |
12.6mm |
||
|
Operation |
Manual Iris |
||
|
Manual Focus |
|||
|
Design Wavelength |
420~1000nm |
||
|
Filter Thread |
M30.5×P0.5 |
||
 |
|||
