Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4· High relative illumination
· Lens for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4|

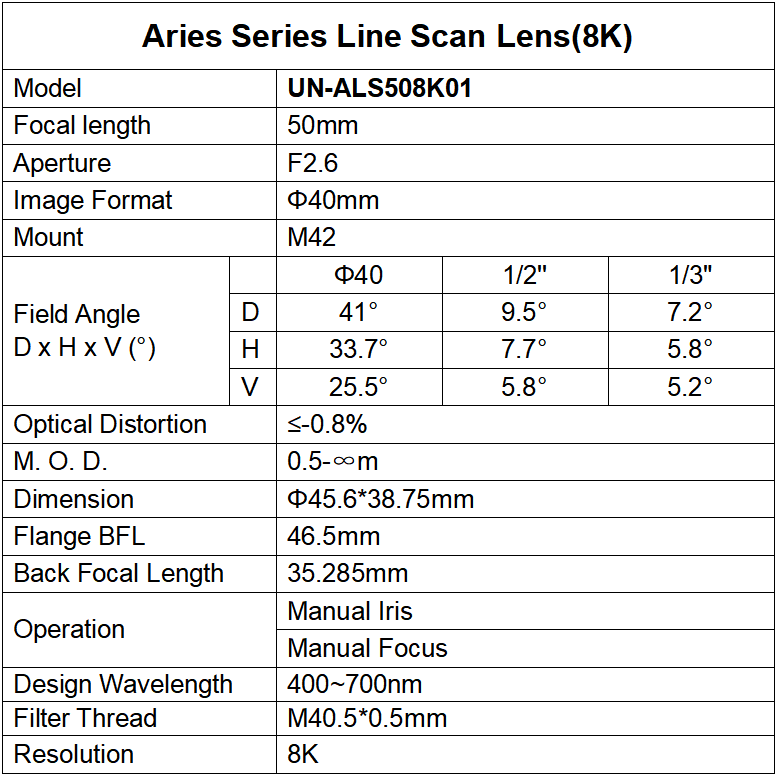

Aries Series Line Scan Lens(8K) |
||
|
Model |
UN-ALS508K01 |
|
|
Focal length |
50mm |
|
|
Fixed Aperture |
F2.6 |
|
|
Image Format |
40 |
|
|
Mount |
M42 |
|
|
Field Angle |
41°*33.7°*25.5° |
|
|
Optical Distortion |
<-0.8% |
|
|
M. O. D. |
0.5m |
|
|
Dimension |
Φ45.6*38.75mm |
|
|
Flange BFL |
46.5mm |
|
|
Back Focal Length |
35.285mm |
|
|
Operation |
Manual Iris |
|
|
Manual Focus |
||
|
Filter Thread |
M40.5*0.5 |
|
 |
||
