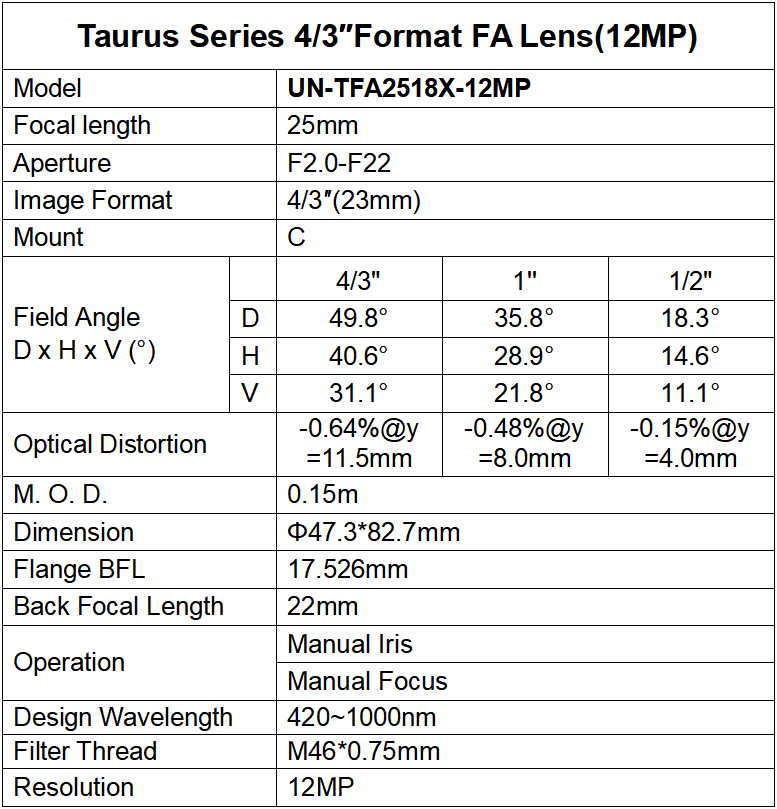

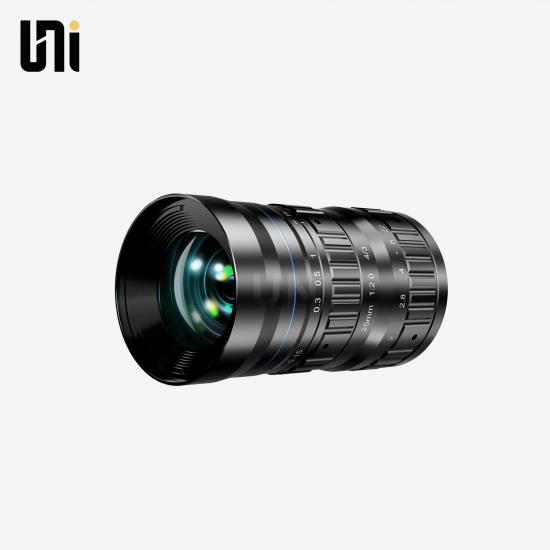

UN-TFA2518X-12MP

Taurus Series 4/3″Format FA Lens(12MP)

Model

UN-TFA1220X-12MP

Focal length

12mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

89.1°

69.0°

37.4°

H

75.6°

57.36°

30.2°

V

61.2°

44.3°

22.7°

Optical Distortion

-2.05%@

y=11.5mm

-1.73%@

y=8.0mm

-1.01%@

y=4.0mm

M. O. D.

0.15m

Dimension

Φ79.8*83.8mm

Back Focal Length

18.8mm

Operation

Manual  Iris

Manual  Focus

Design Wavelength

420~1000nm

Filter Thread

M77.0×P0.75

Weight

438g

Work Temperature

-20℃～+60℃

Taurus Series 4/3″Format FA Lens(12MP)

Model

UN-TFA1620X-12MP

Focal length

16mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

73.0°

54.2°

28.3°

H

61.0°

44.3°

22.7°

V

47.3°

33.6°

17.1°

Optical Distortion

-1.93%@

y=11.5mm

-1.82%@

y=8.0mm

-0.55%@

y=4.0mm

M. O. D.

0.1m

Dimension

Φ60.2*85.9mm

Back Focal Length

21mm

Design Wavelength

420~1000nm

Operation

Manual  Iris

Manual  Focus

Filter Thread

M58.0×P0.75

Weight

339g

Work Temperature

-20℃～+60℃

Taurus Series 4/3″ Format FA Lens(12MP)

Model

UN-TFA3520X-12MP

Focal length

35mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

36.8°

26.0°

13.2°

H

29.7°

20.8°

10.6°

V

22.5°

15.8°

7.9°

Optical Distortion

-0.52%@

y=11.5mm

-0.42%@

y=8.0mm

-0.12%@

y=4.0mm

M. O. D.

0.2m

Dimension

Φ48.5*64.3mm

Back Focal Length

18mm

Design Wavelength

420~1000nm

Operation

Manual  Iris

Manual  Focus

Filter Thread

M46×P0.75

Weight

207g

Work Temperature

-20℃～+60℃

Taurus Series 4/3″ Format FA Lens(12MP)

Model

UN-TFA5020X-12MP

Focal length

50mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

26.0°

18.3°

9.2°

H

21.0°

14.7°

7.3°

V

15.8°

11.1°

5.6°

Optical Distortion

-0.13%@

y=11.5mm

-0.05%@

y=8.0mm

-0.01%@

y=4.0mm

M. O. D.

0.3m

Dimension

Φ48*67mm

Back Focal Length

20mm

Design Wavelength

420~1000nm

Operation

Manual  Iris

Manual  Focus

Filter Thread

M46×P0.75

Weight

219g

Work Temperature

-20℃～+60℃

Taurus Series 4/3″ Format FA Lens(12MP)

Model

UN-TFA3520X-12MP

Focal length

35mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

36.8°

26.0°

13.2°

H

29.7°

20.8°

10.6°

V

22.5°

15.8°

7.9°

Optical Distortion

-0.52%@

y=11.5mm

-0.42%@

y=8.0mm

-0.12%@

y=4.0mm

M. O. D.

0.2m

Dimension

Φ48.5*64.3mm

Back Focal Length

18mm

Design Wavelength

420~1000nm

Operation

Manual  Iris

Manual  Focus

Filter Thread

M46×P0.75

Weight

207g

Work Temperature

-20℃～+60℃
