Spherical Lens

/3mm Diameter, Aluminum Coated, Cone Lens

Micro-components-Cone Lens
3mm Diameter, Aluminum Coated, Cone Lens 3mm Diameter, Aluminum Coated, Cone Lens

3mm Diameter, Aluminum Coated, Cone Lens

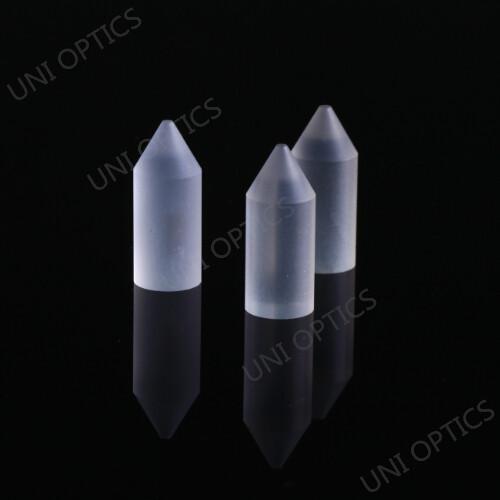

Cone lenses are cylindrical rod lenses with one end worked into a conical surface. The circumference of the rod is typically ground whereas the conical element is polished.

  • product origin:

    China

  • shipping port:

    Fuzhou China

  • lead time:

    4 working weeks

  • payment:

    T/T Payment, Western Union
Inquiry now
  • description

1. What is the Cone lenses?


Cone lenses are cylindrical rod lenses with one end worked into a conical surface. The circumference of the rod is typically ground whereas the conical element is polished.


2. What are Cone lenses used for?


Cone lenses are designed for use in a variety of laser and imaging applications. The addition  of this product line is part of a continued efforts to support current trends miniaturization. Cone Lenses can be used for 360 degree illumination and imaging applications.


3. What is the standard size can be available from UNI OPTICS?


UNI Optics can provide the size from Φ1～Φ15mm



Common specification


Material: Schott, Ohara, CDGM, Corning Fused Silica and JGS1, JGS2
Shape: Rod&conical
Focal length: +/-1%
Surface Quality: 40-20 or better
Surface figure: l/4 @ 633nm
Angle: +/-5″
Clear Aperture: >90%
Coating: Coated or uncoated
