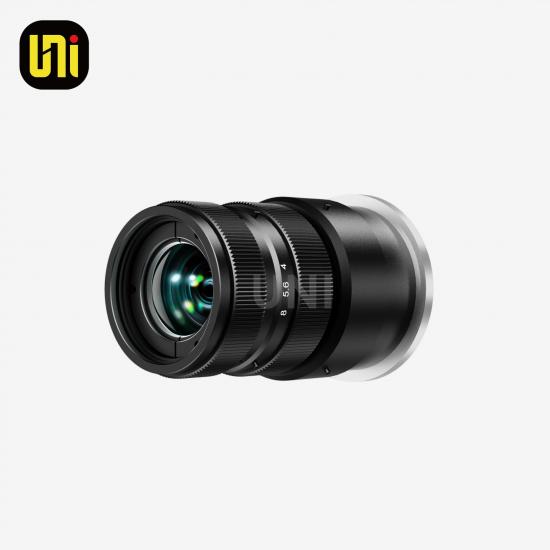

Line Scan Lens UN-ALS6316K

For high-resolution web inspection, semiconductor wafer inspection, print inspection, etc.

· Developed for 86mm big frame sensor
· Low distortion
· Lens for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For high-end PCB AOI inspection, Mini/Micro LED panel micro-defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow precision metal strip flaw detection, luxury printing anti-counterfeit texture inspection, electronic ceramic substrate microscopic inspection and high-precision linear dimension measurement of tiny electronic components.

· Developed for 66mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For high-end PCB AOI micro-inspection, Mini/Micro LED panel pixel defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow high-temperature metal strip flaw detection, luxury anti-counterfeit printing texture inspection, electronic ceramic substrate microscopic testing, UAV high-precision aerial survey mapping and ultra-precise online dimensional measurement of micro electronic components.

· Developed for 82mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For high-precision machine vision applications, widely covering dimensional inspection and surface defect detection for consumer electronics, food and pharmaceutical packaging detection, printing & label inspection, robotic vision guidance and precise positioning, as well as in-line dimensional measurement of automotive components in typical industrial scenarios.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible 1.2" 12MP camera

Product information: Custom designs are available upon request.

For Smart Sensors & Photovoltaic Inspection

· Developed for φ28 image format
· Wavelength: 900-1700nm
· Large Aperture, up to F1.4
· Compact and lightweight design

For SMT Assembly Inspection, Food/Beverage/Pharmaceutical Packaging Inspection , Printing & Label Inspection, etc.

· Developed for 2/3" image format
· Compact and lightweight design
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.
