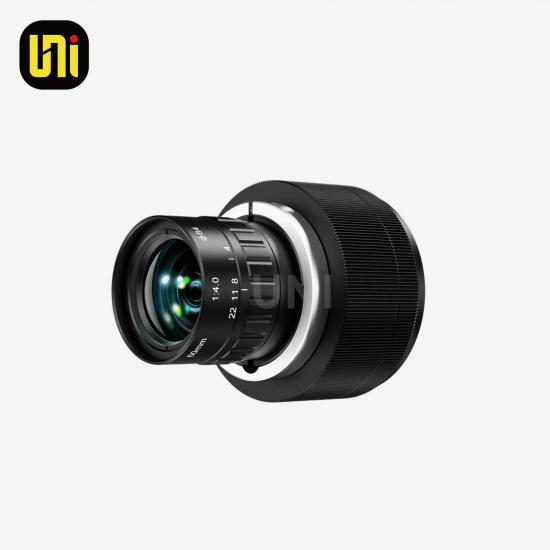

Line Scan Lens UN-ALS604L-8K

For precision optical film inspection, lithium battery copper foil, aluminum foil, separator and pole piece defect detection, FPD panel glass and polarizer inspection, photovoltaic glass and silicon wafer surface screening, high-grade printing and flexible packaging quality inspection, ceramic substrate and metal strip precision appearance detection.

· Developed for 44mm big frame sensor
· High relative illumination
· Lens for 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For lithium battery copper foil & pole piece micro-defect detection, PCB inspection, photovoltaic silicon wafer surface screening, precision metal strip flaw detection, advanced cigarette and pharmaceutical printing inspection as well as ceramic electronic substrate detection.

· Developed for 61mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For automotive polarizer & Mini LED backlight substrate testing, medium-grade fine-line FPC & IC carrier board AOI detection, solar cell EL hidden crack screening, narrow precision cold-rolled metal strip flaw inspection, pharmaceutical packaging & medium anti-counterfeit printing quality control and electronic ceramic substrate microscopic inspection.

· Developed for 32mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, surface defect detection of metal sheets and coils, flat panel display & glass defect inspection, and dimension measurement of various rolled materials.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

Magnesium Fluoride Windows applicable for wide range spectrum, transmits well into the VUV region at the hydrogen Lyman-alpha line and beyond and it is particularly useful for Excimer laser application.It is resistant to mechanical and thermal shock, to radiation, and is chemically stable.

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· Ultra-high resolution, accurately capture license plates and facial details

Product information: Custom designs are available upon request.

Plano-concave rectangular cylindrical lenses provide uni- axial negative imaging for anamorphic beam expansion and a wide range of applications.These lenses may also be used as mirror blanks if a concave cylindrical surface mirror is required.

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 1/1.8" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.
