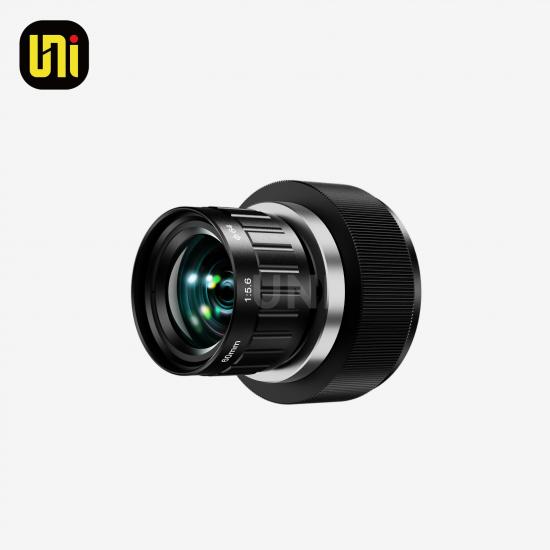

Line Scan Lens UN-ALS60056L-8K

For precision optical film inspection, lithium battery copper foil, aluminum foil, separator and pole piece defect detection, FPD panel glass and polarizer inspection, photovoltaic glass and silicon wafer surface screening, high-grade printing and flexible packaging quality inspection, ceramic substrate and metal strip precision appearance detection.

· Developed for 44mm big frame sensor
· High relative illumination
· Lens for 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For lithium battery copper foil & pole piece micro-defect detection, PCB inspection, photovoltaic silicon wafer surface screening, precision metal strip flaw detection, advanced cigarette and pharmaceutical printing inspection as well as ceramic electronic substrate detection.

· Developed for 61mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For automotive polarizer & Mini LED backlight substrate testing, medium-grade fine-line FPC & IC carrier board AOI detection, solar cell EL hidden crack screening, narrow precision cold-rolled metal strip flaw inspection, pharmaceutical packaging & medium anti-counterfeit printing quality control and electronic ceramic substrate microscopic inspection.

· Developed for 32mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For Smart Sensors & Photovoltaic Inspection

· Developed for φ28 image format
· Wavelength: 900-1700nm
· Large Aperture, up to F1.4
· Compact and lightweight design

For Consumer Electronics Inspection, Semiconductor & PCB Inspection, AOI, Railway Inspection, etc.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 4/3" 45MP camera

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 30mm big frame sensor

Product information: Custom designs are available upon request.
