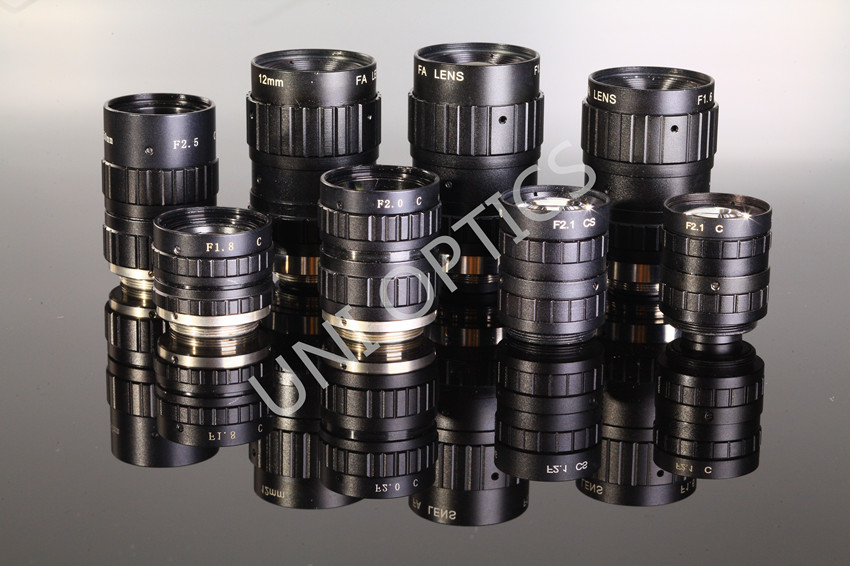

UNI developed own brand 3.0&5.0 Megapixel series of our newest lineup of high end machine vision lenses
addressing the needs of application using high pixel count image sensors. At UNI Optics, we have
developed a lineup of a new fixed focal lenses, consisting of 6 items of 2/3’’ format lenses supporting 3.0&5.0 Megapixel.
With these lenses, in addition to some vari-focal lenses supporting up to 1.5 mega-pixel, we aim to satisfy the
diversifying needs of our customers.
And UNI machine lenses have followings features:
High-resolution design, providing support for up to 3.0-5.0 Megapixel camera resolution.
Low distortion
Locking set screws for focus and iris.
High image quality through improved marginal light quantity ratio.
Robust design for vibration resistance
Compact & simple for machine use
3.0 Mega Pixel FA lenses
| Item No. | Focal Length(mm) | F/No. | Distortion | MOD(m) | Format('') | Mount | Dimension |
|---|---|---|---|---|---|---|---|
| UNI-08516CM | 8.5mm | 1.6 | 0.1% | 0.25 | 2/3'' | C | Φ40x70.25 |
| UNI-1216CM | 12mm | 1.6 | 0.1% | 0.25 | 2/3'' | C | Φ40x67 |
| UNI-1616CM | 16mm | 1.6 | 0.5% | 0.25 | 2/3'' | C | Φ40x63.8 |
| UNI-2518CM | 25mm | 1.8 | 0.1% | 0.15 | 2/3'' | C | Φ34.5x32.5 |
| UNI-3520CM | 35mm | 2.0 | 0.1% | 0.20 | 2/3'' | C | Φ34.5x46.5 |
| UNI-5025CM | 50mm | 2.5 | 0.1% | 0.25 | 2/3'' | C | Φ34.5x56 |
| UNI-082014CM | 8-20mm | 1.4 | 3% | 1 | 1/1.8'' | C | Φ33x71.6 |
| UNI-185014SM | 18-50mm | 1.4 | 3% | 5 | 1/1.8'' | CS | Φ48x103 |
5.0 Mega Pixel FA lenses
| Item No. | Focal Length(mm) | F/No. | Distortion | MOD(m) | Format('') | Mount | Dimension |
|---|---|---|---|---|---|---|---|
| UNI-08516EM | 8.5mm | 1.6 | 0.1% | 0.25 | 2/3'' | C | Φ40x70.25 |
| UNI-1216EM | 12mm | 1.6 | 0.1% | 0.25 | 2/3'' | C | Φ40x67 |
| UNI-1616EM | 16mm | 1.6 | 0.5% | 0.25 | 2/3'' | C | Φ40x63.8 |
| UNI-2518EM | 25mm | 1.8 | 0.1% | 0.15 | 2/3'' | C | Φ34.5x32.5 |
| UNI-3520EM | 35mm | 2.0 | 0.1% | 0.20 | 2/3'' | C | Φ34.5x46.5 |
| UNI-5025EM | 50mm | 2.5 | 0.1% | 0.25 | 2/3'' | C | Φ34.5x56 |
