· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1'' and 1.1'' 20MP camera
· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1'' and 1.1'' 20MP camera
|

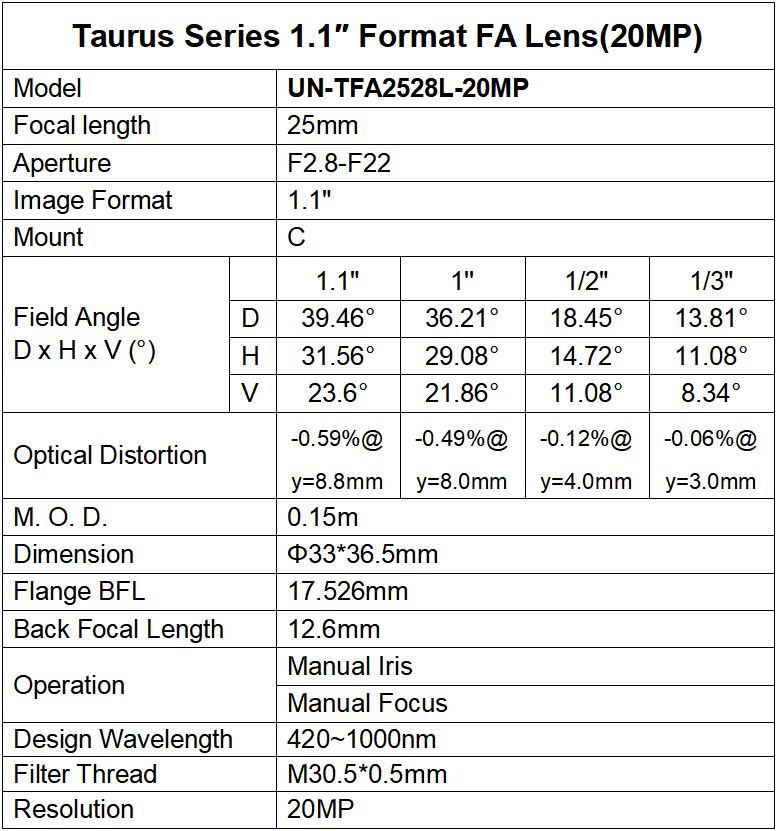

Taurus Series 1.1″ Format FA Lens(20MP) |
||||||
|
Model |
UN-TFA2528L-20MP |
|||||
|
Focal length |
25mm |
|
||||
|
Aperture |
F2.8-F22 |
|||||
|
Image Format |
1.1″ |
|||||
|
Mount |
C |
|||||
|
Field Angle D x H x V (°) |
|
1.1" |
1" |
1/2" |
1/3" |
|
|
D |
39.46° |
36.21° |
18.45° |
13.81° |
||
|
H |
31.56° |
29.08° |
14.72° |
11.08° |
||
|
V |
23.6° |
21.86° |
11.08° |
8.34° |
||
|
Optical Distortion |
-0.59%@ y=8.8mm |
-0.49%@ y=8.0mm |
-0.12%@ y=4.0mm |
-0.06%@ y=3.0mm |
||
|
M. O. D. |
0.15m |
|||||
|
Dimension |
Φ33*36.5mm |
|||||
|
Flange BFL |
17.526mm |
|||||
|
Back Focal Length |
12.6mm |
|||||
|
Operation |
Manual Iris |
|||||
|
Manual Focus |
||||||
|
Design Wavelength |
420~1000nm |
|||||
|
Filter Thread |
M30.5×P0.5 |
|||||
 |
||||||
