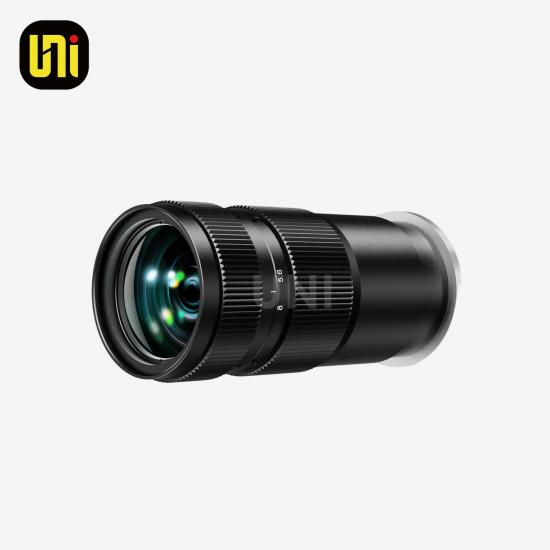

Line Scan Lens UN-ALS10024K

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 2/3" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.

For high-precision machine vision applications, broadly covering dimensional inspection and surface defect detection in consumer electronics, robotic vision guidance and positioning, as well as automotive component in-line measurement, and intelligent logistics & sorting systems and so on.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1" and 1.1" 12MP camera

Product information: Custom designs are available upon request.

For high-precision machine vision applications, widely covering dimensional inspection and surface defect detection for consumer electronics, food and pharmaceutical packaging detection, printing & label inspection, robotic vision guidance and precise positioning, as well as in-line dimensional measurement of automotive components in typical industrial scenarios.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible 1.2" 12MP camera

Product information: Custom designs are available upon request.

1、What are laser windows?

Laser Protect Windows(Laser protective glass, protective filters or welding protective windows) are used to save for the high cost of laser optics.

2、What are laser windows used for?

These windows are normally used in applications like laser cutting, laser welding machine, they are used for avoiding the high-precision laser optics damage by material splashes.

3、The key features of UNI Optics' Laser Windows

High Transmission

High Damage Threshold

Low Scatter

Low Absorption

Excellent Film Density

Excellent Environmental Stability

Typical Specifications:

Dimension: 4mm-80mm, round or square

Material: BK7, Fused Silica, ZnSe...etc

Surface quality: 10/5

Surface flatness: Lambda/10@632.8nm

Parallelism: 30’’

Roughness: 3A

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· Ultra-high resolution, accurately capture license plates and facial details

Product information: Custom designs are available upon request.

For lithium battery electrode, copper foil and ceramic separator inspection, PCB & single-layer FPC AOI detection, silicon wafer routine sorting, food packaging & label printing quality control and electronic ceramic substrate inspection.

· Covering a wide working distance range

· Lockable distance and aperture settings

Product information: Custom designs are available upon request.
